CNC Plasma Cutting Tables

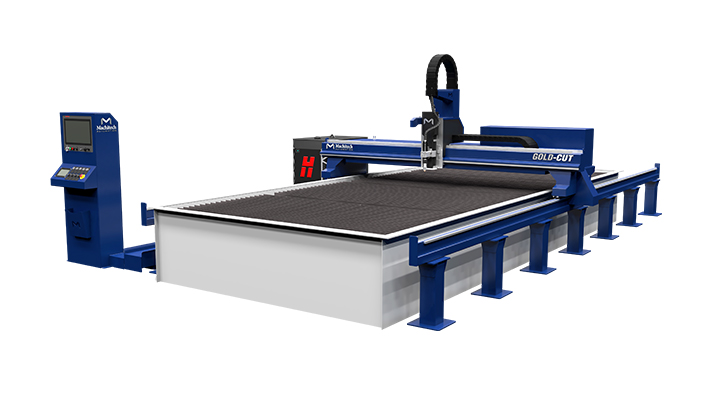

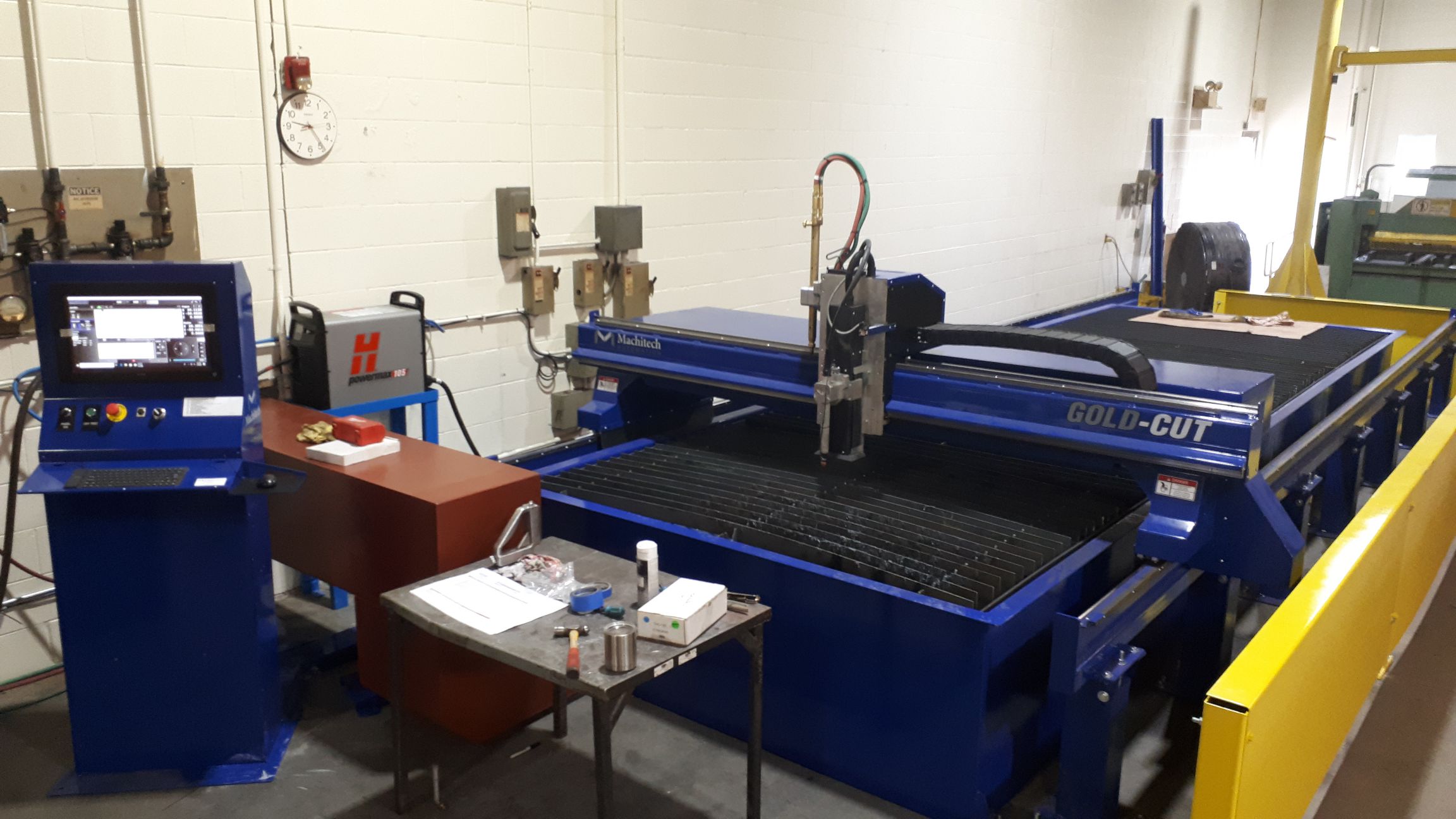

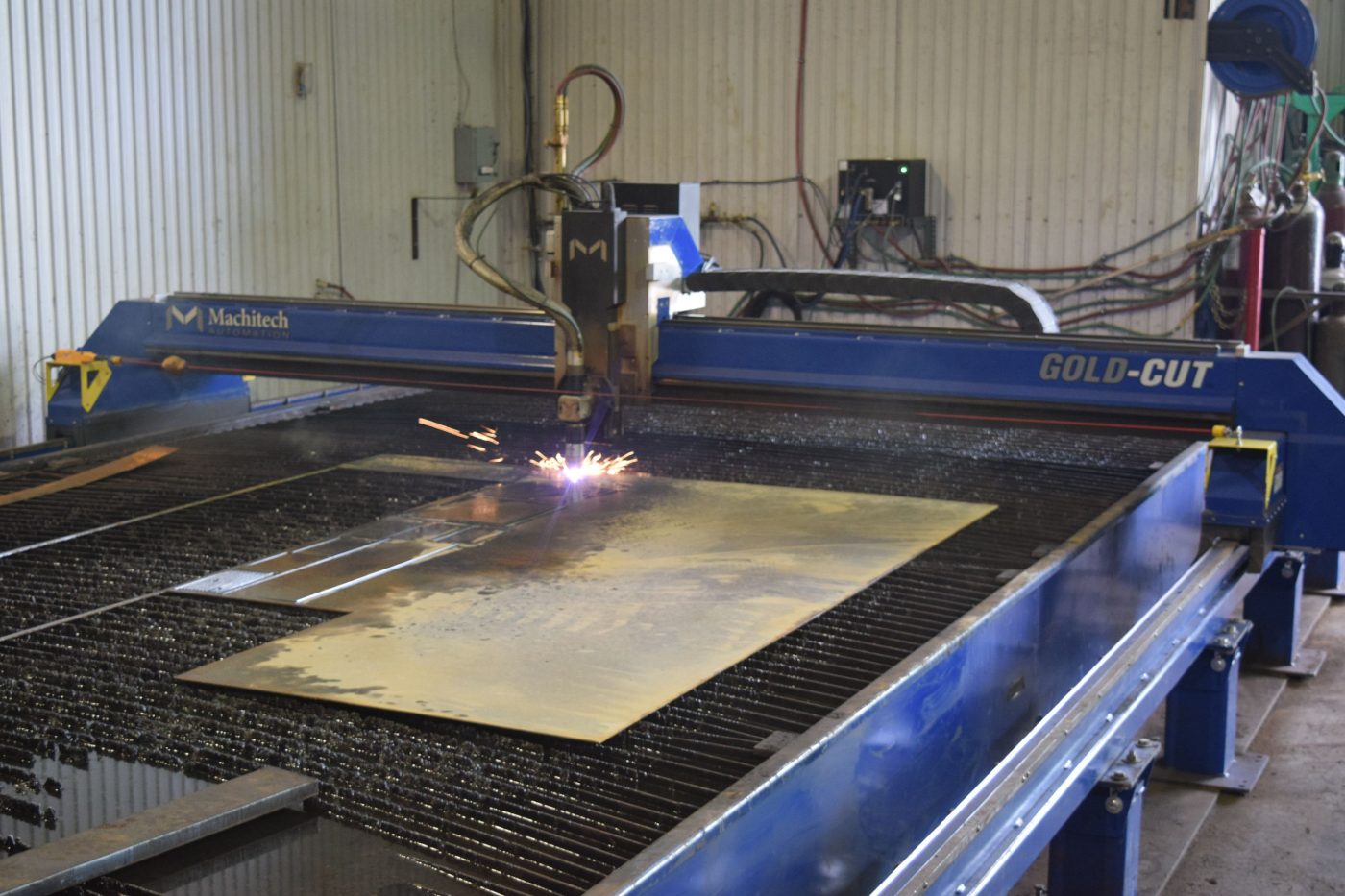

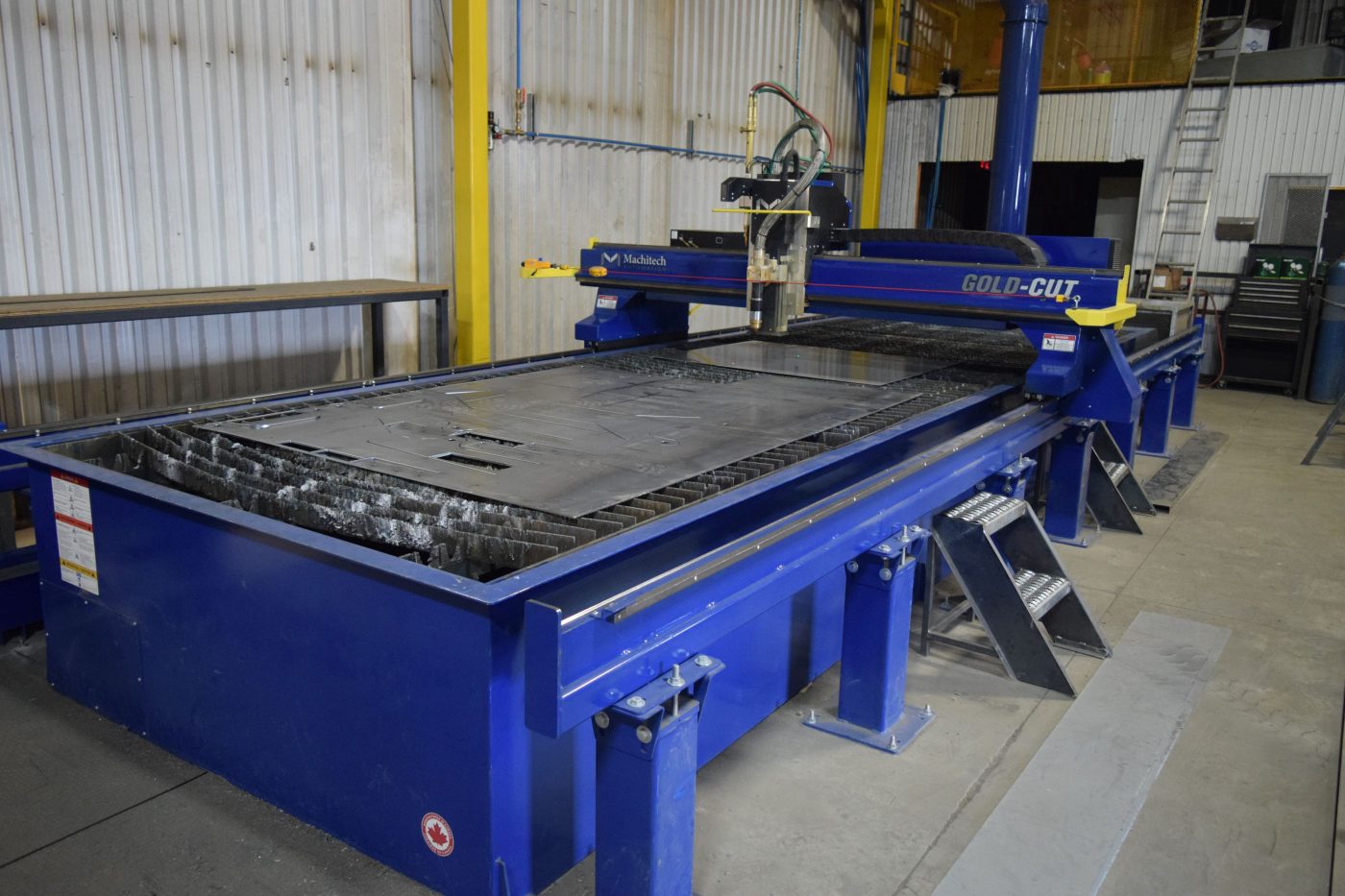

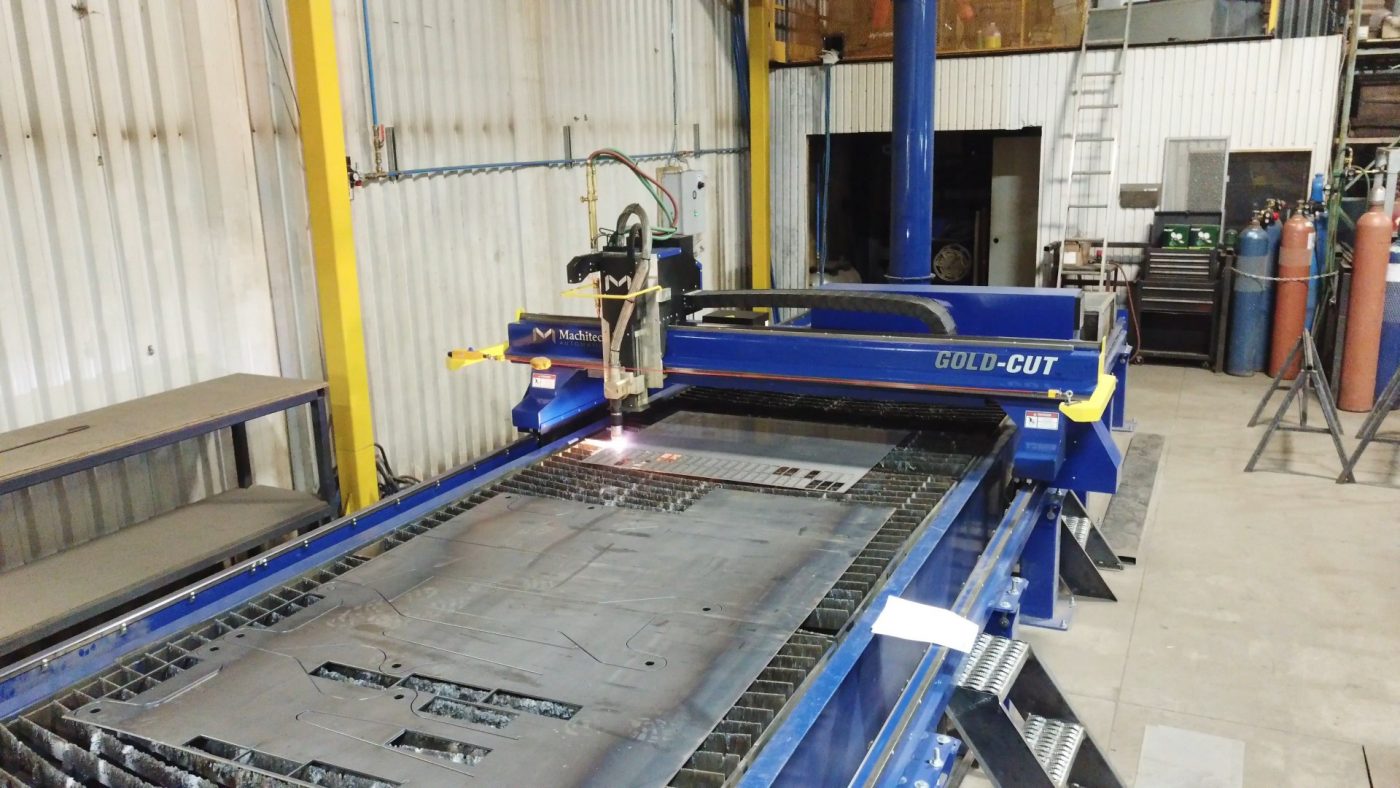

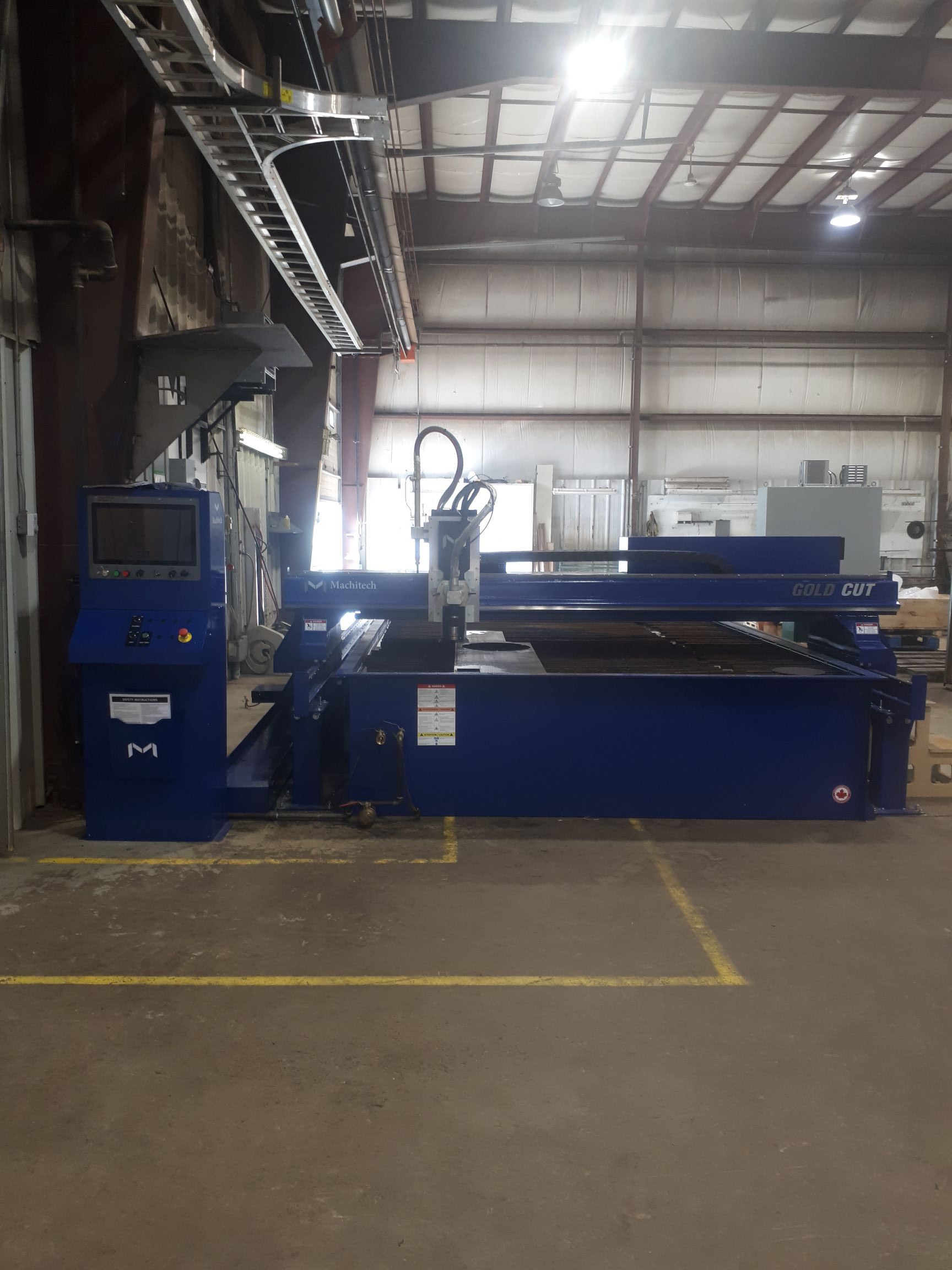

Gold Cut™
Sheet metal to heavy plate capability

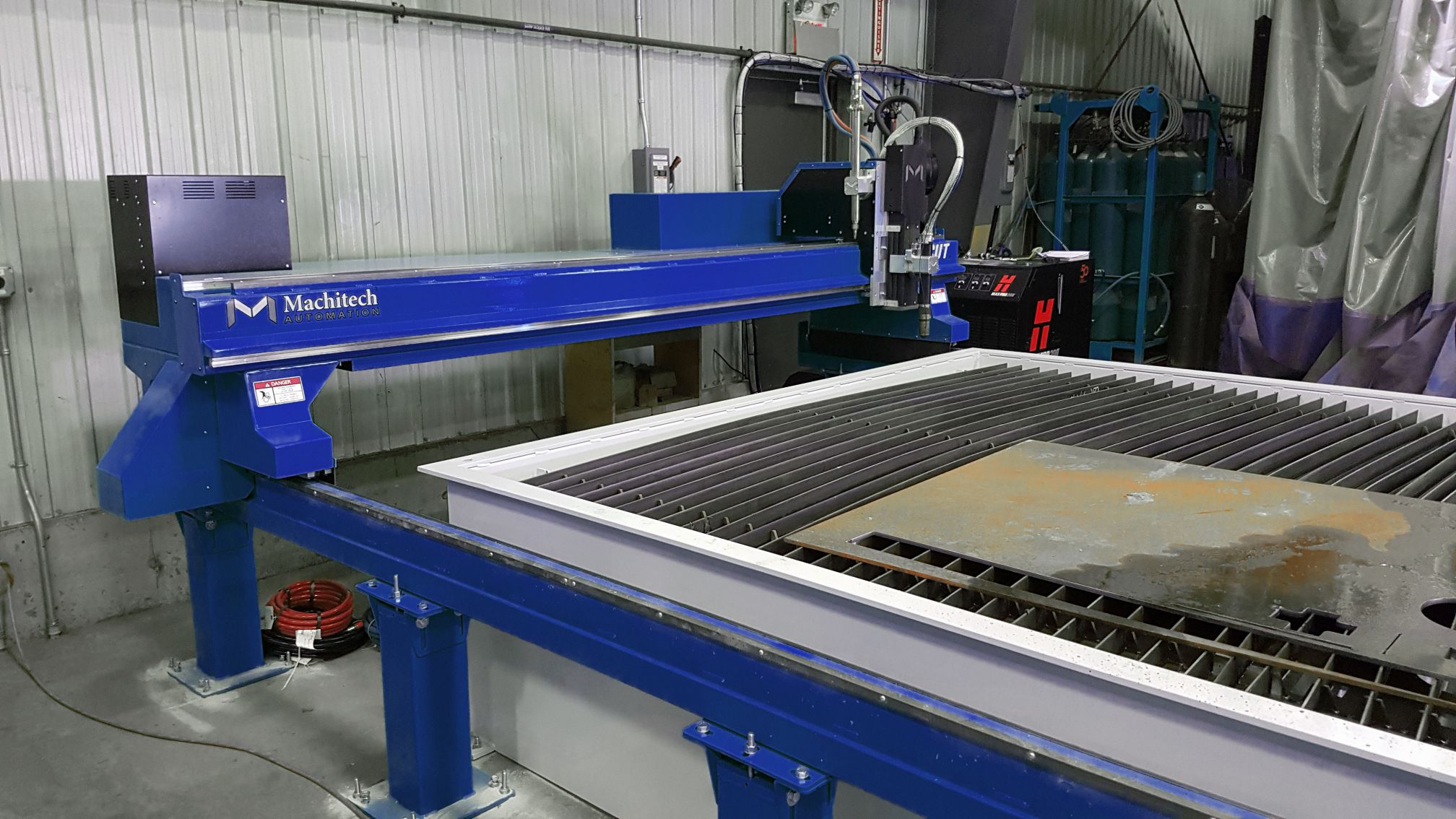

The Machitech GoldCut™ is a flexible gantry and rails system designed to be used with an existing downdraft or water table. Featuring Hypertherm HPR and XPR plasma, it's a good solution for customers looking for high volume production.
Request a pricing quote
Contact us to get a free custom quote
Request a pricing quote
Contact us to get a free custom quote
- 5’x10’ up to 10’x40’ (custom avail.)
- Heavy Duty System
- Modular design for table expansion
- Magnetic Torch Breakaway System
- Automatic Torch Height Controller
- Bosch Rexroth Servo Motor Drives
- Self-cleaning DualVee Linear system
- Can use existing table or build your own
- Downdraft or water table (option)
- 6”x8” Steel Gantry Fully Machined
- Oversized End-trucks
- Agma 10 Helical Rack & Pinion on all axis
- Bosch Linear Ways on gantry
- Ultra-precise Helical Planetary Gearboxes
- Heat shield under gantry
- Cables and hoses are fully enclosed
- Hypertherm XPR170 Plasma (Most Popular)
- Hypertherm XPR300 Plasma
- Hypertherm HPR400XD Plasma
- Hypertherm Powermax125 Plasma
- Hypertherm Edge Connect™ Controller
- Hypertherm Pronest 2019 Software
- Machitech Industrial Enclosure
- Oxy/fuel torch on magnetic quick-change system
- Fume extraction Systems
- Pipe and Tube Cutting systems
- Removable trays for easy cleanout (waterbed)
- Electronic raise/lower system (waterbed)
- Digitizing tablets
- Manual Bevel System
- IHT Automatic Oxyfuel Torches
- Pneumatic scribe, inkjet or dot peen market
- Safety system (pull cord, light curtain)
- Additional clearance under gantry (up to 12″)
- Table Capacity: 4″
- Clearance Under Gantry: 6.5″
- Cutting Speed: 500 IPM (process)
- Max Speed Traverse: 1000 IPM
- Repeatability: 0.001″
- Positioning Accuracy: 0.003″/li>
CD Industries - Gatineau, QC
CD Industries is a fabricator, distributor and repair shop of hydraulic and pneumatic systems. Do like CD Industries and trust Machitech for your plasma cutting table projects. You’ll have access to the best customer service on the market.
Watch on Youtube
Features and Specifications
Top-of-the-line Standard Features
Available sizes: 5’x10’ up to 10’x40’ (custom available)
Heavy Duty Gantry & Rails System
Modular design allows for table expansion if needed
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Self-cleaning DualVee Linear slide system on pedestals
Can use existing table or build your own with supplied plans
Machitech can supply a downdraft or water table (option)
6”x8” Steel Gantry Fully Machined and Welded
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on gantry
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track
Why choose Machitech?
Full part list and electrical schematics
On-site installation and tailored training included
Free lifetime remote support
Hypertherm XPR170 Plasma System
The new XPR170™ represents the most significant advance in mechanized plasma cutting technology, ever. It advances HyDefinition® cut quality by blending new technology with refined processes for next generation, X-Definition™ cutting on mild steel, stainless steel and aluminum.
Other Plasma Systems Available
Hypertherm Edge Connect™ Controller
EDGE Connect is the next generation of Hypertherm’s industry leading automated control systems. This new platform is built upon 50 years of experience and commitment to develop, build, and sell products that improve your cutting operation.
Machitech Industrial Enclosure
Our self-standing industrial enclosure protects the controller against dust and impacts while providing hardware controls to the operator.
Available options for the GoldCut
Oxy/fuel torch on magnetic quick-change system
Fume extraction Systems
Pipe and Tube Cutting systems
Removable trays for easy cleanout (waterbed)
Electronic raise/lower system (waterbed)
Digitizing tablets
Manual Bevel System
IHT Automatic Oxyfuel Torches
Pneumatic scribe, inkjet or dot peen market
Safety system (pull cord, light curtain)
Additional clearance under gantry (up to 12″)
Featured options

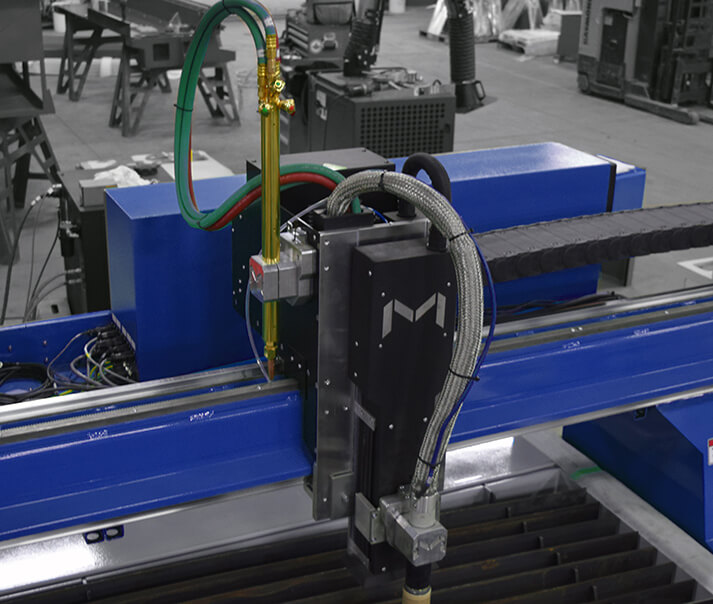

Oxy/fuel torch on magnetic quick-change system

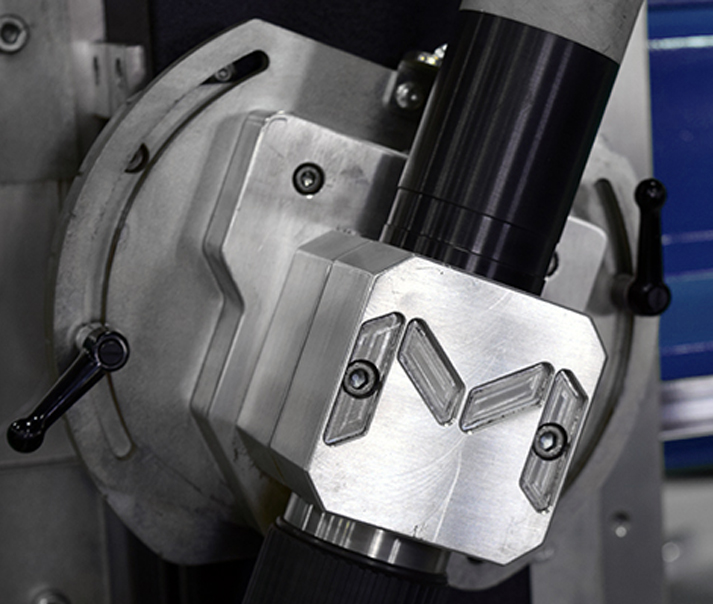

Manual Bevel System
Machine Specifications
Table Capacity: 4″
Clearance Under Gantry: 6.5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1000 IPM
Repeatability: 0.001″
Positioning Accuracy: 0.003″
97%
of our customers
would recommend Machitech
Lifetime Remote Support
You need us? We're Ready. Anytime.

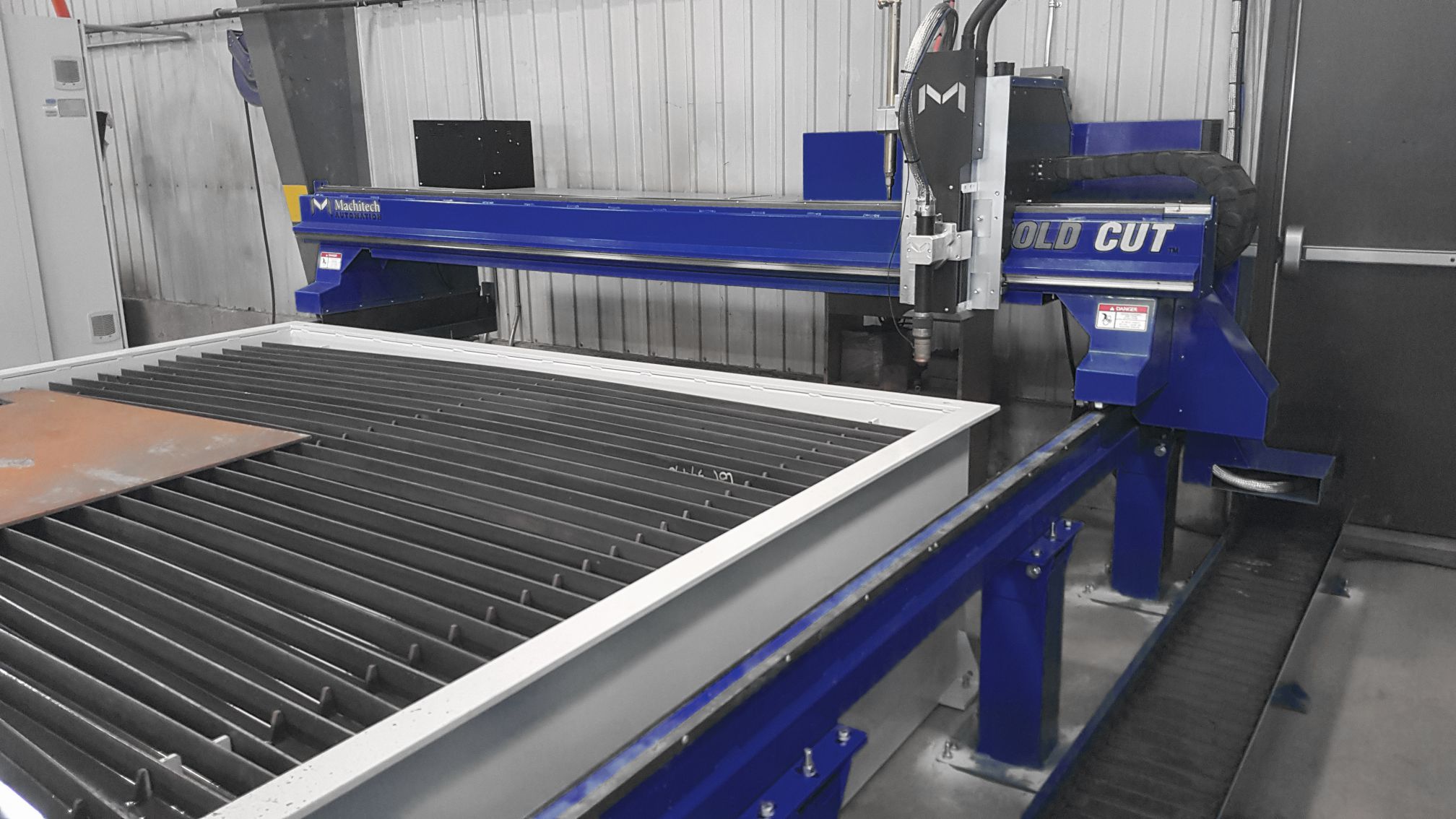

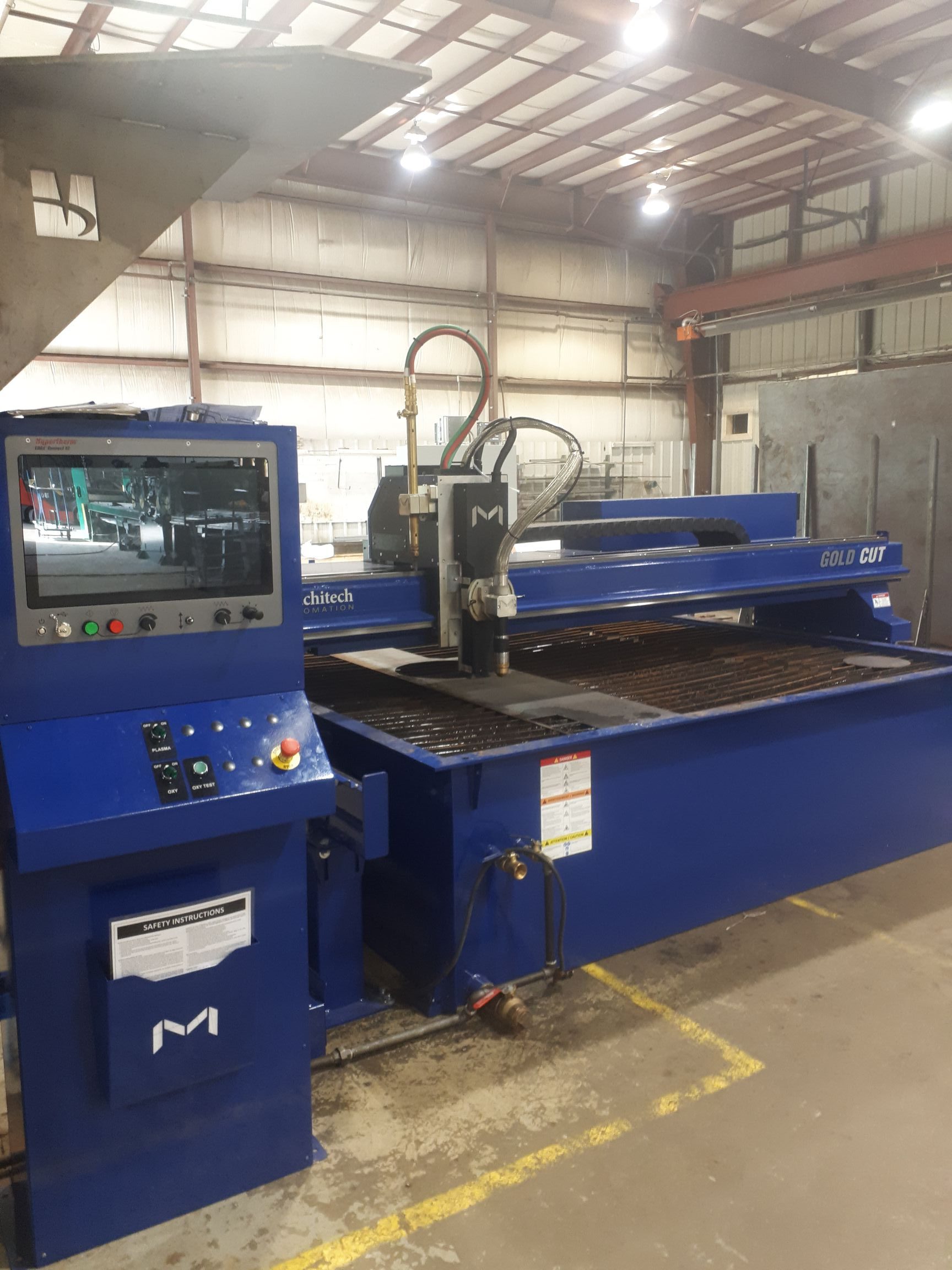

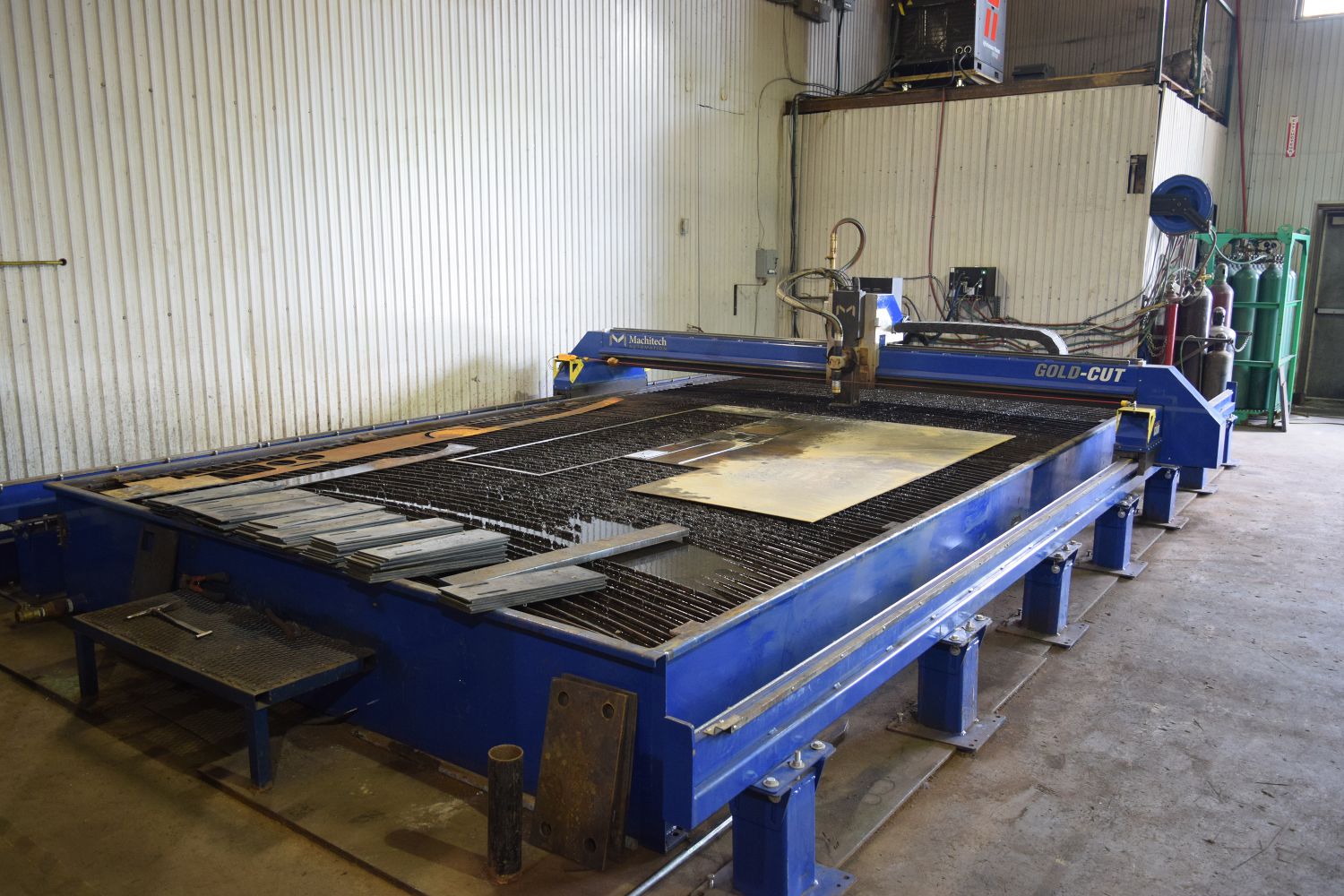

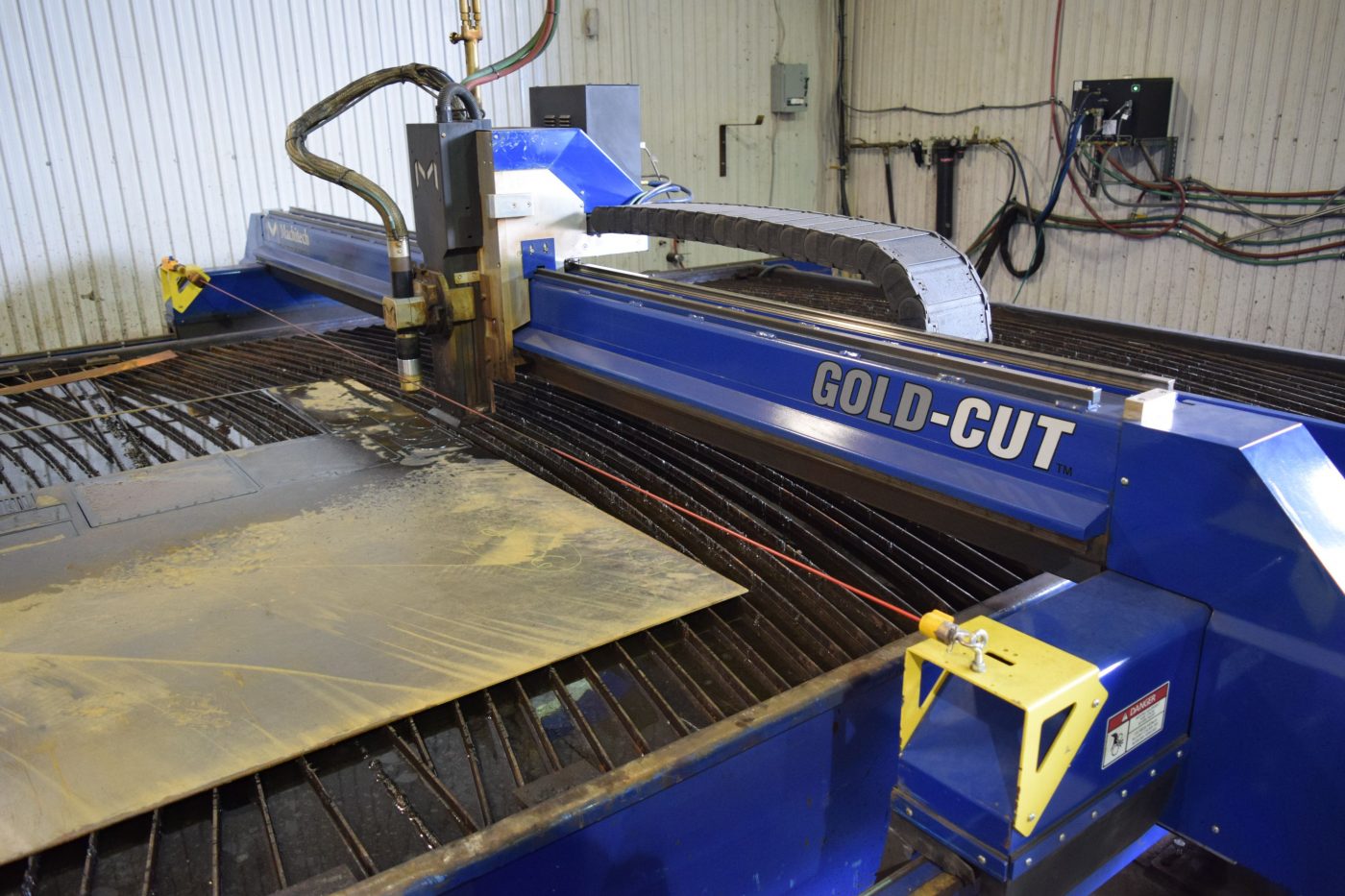

Photos and Videos
CUSTOMER PROFILES

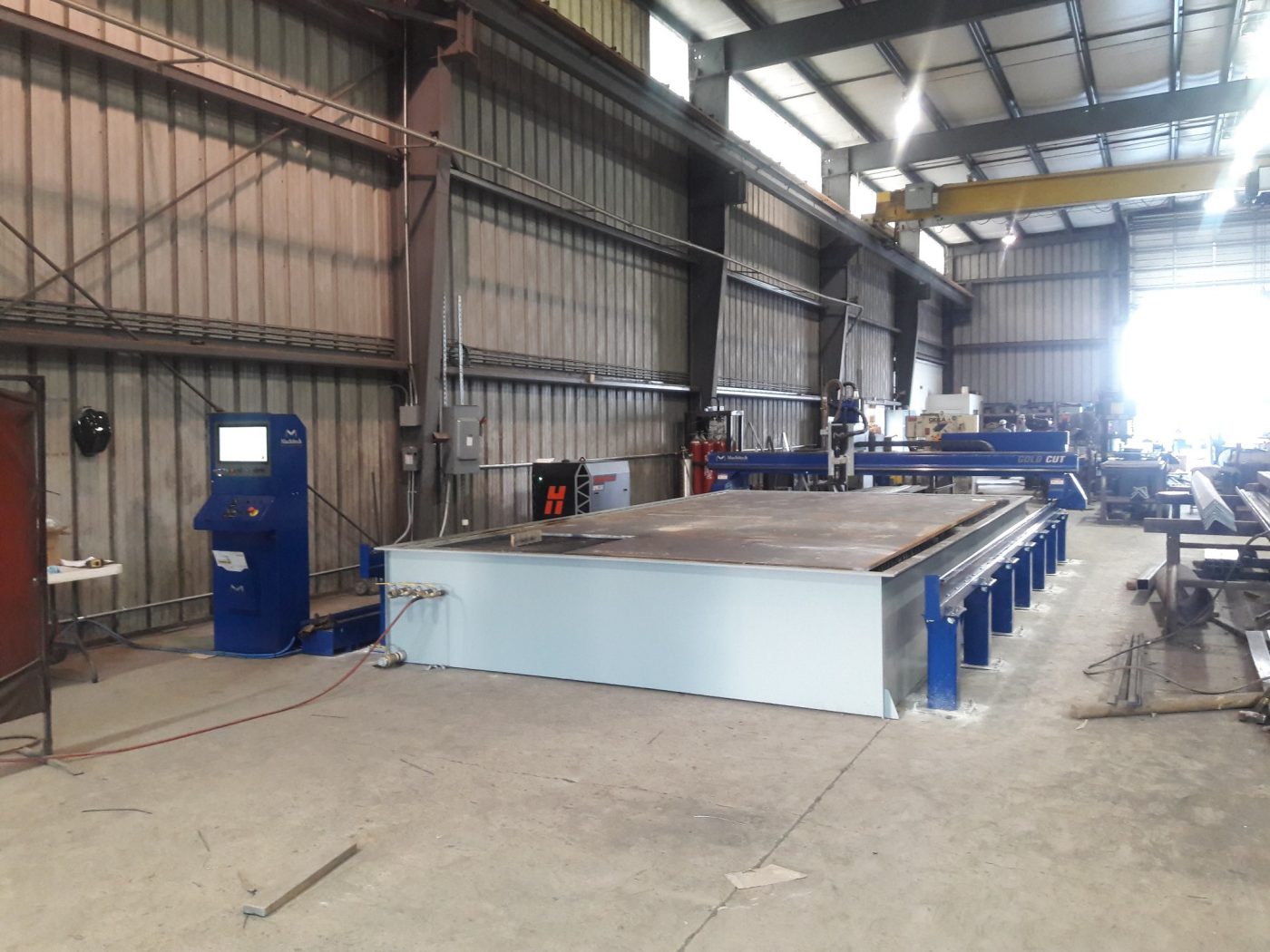

CD Industries - Gatineau, Quebec, Canada
Hear the reasons why CD Industries, manufacturer and distributor of hydraulic and pneumatic systems, trusted Machitech for their Plasma Table project.
You might be interested in these solutions

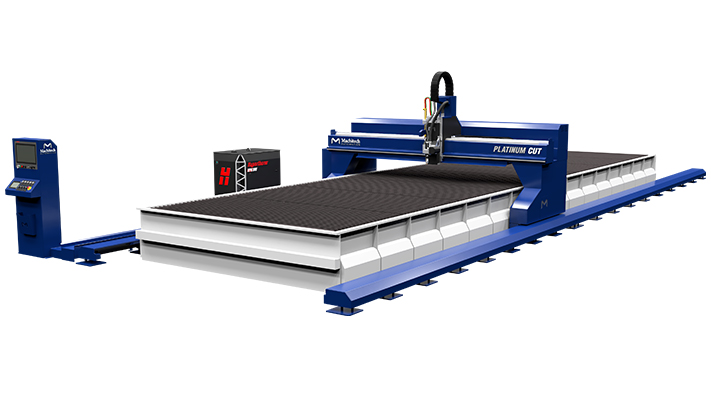

Platinum Cut™
Industrial bridge and rail system engineered for multiple tool cutting processes.

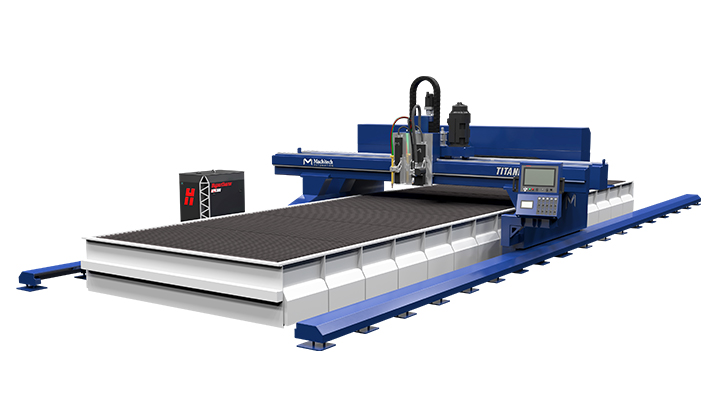

Titanium Cut™
