Bending Machines
Press Brakes

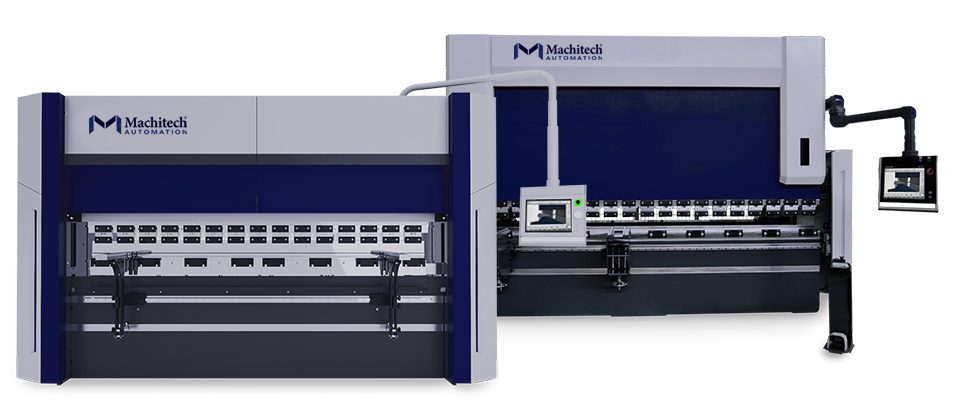

Wide Range of Hydraulic and Electric Press Brakes
Machitech offers a large range of CNC press brakes, spanning from 40 to 2,000 tons, Hydraulic or Electric. Featuring innovative technology and features designed to enhance productivity, such as advanced CNC controls from Delem, intelligent bending aids, and automation capabilities. Even more important, you get direct access to our experts, help from our technicians right on the factory floor, and fast technical help — in short, the most accessible and effective support the industry has to offer.
Request a pricing quote
Contact us to get a free custom quote
Request a pricing quote
Contact us to get a free custom quote
- Rigid gantry style construction
- Pipe range: 2.5” up to 48” diameter
- Cutting zone length: 21′ or 42′
- Automatic Torch Height Controller
- Bosch Rexroth Servo Motor Drives
- Patented Inverted Rails System
- Bosch Linear Ways on Machined surfaces
- Weld prep, mitres, saddles, holes, slots, gussets, etc.
- Chuck driven: precise, no slippage
- Automatic chuck height & clamping
- Floating chuck for out of round pipes
- Motorized in-feed conveyor: up to 60’
- Pneumatic support roller units
- Hypertherm XPR300 Plasma (Most Popular)
- Hypertherm XPR170 Plasma
- Hypertherm HPR400XD Plasma
- Hypertherm HPR800XD Plasma
- Hypertherm Edge Connect™ Controller
- Hypertherm Rotary Tube Pro 2019 Software
- Machitech Industrial Enclosure
- 5-Axis Full Contour Bevel Head
- Plate Cutting Table
- 48″ diameter pipe capability
- Infeed motorized conveyor
- Outfeed motorized conveyor
- Fume extraction Systems
- Additional security options
- Table Capacity: 2.5 to 30″ diameter
- Clearance Under Gantry: 8.5″
- Cutting Speed: 500 IPM (process)
- Max Speed Traverse: 800 IPM
- Repeatability: 0.001″
- Positioning Accuracy: 0.003″
Fought & Company Steel - Portland, Oregon, USA
See why Fought Steel Fabrication, one of the largest structural steel fabricators in Western USA, acquired a Machitech Pipe Cutting machine to build the structure of one of the largest project in Oregon’s history.
Watch on Youtube
Features and Specifications
Top-of-the-line Standard Features
Servo electric press brake, energy efficient
Capacity from 40 to 200 tons
Delem 66S CNC controller, easy to use
Linear guided front support arms
Multi-step finger design
Back Gauge Axis (X-R-Z1-Z2)
CNC crowning for maximum accuracy
Safety fence door and laser front protection
Low maintenance design
Quiet operation
CSA approval
On-site installation and training included
Why choose Machitech?
Full part list and electrical schematics
On-site installation and tailored training included
Free lifetime remote support
Top-of-the-line Standard Features
Hydraulic motor press brake
Capacity from 40 to 2000 tons
Delem 66S CNC controller, easy to use
Hydraulic oil cooling system
Linear guided front support arms
Multi-step finger design
Back Gauge Axis (X-R)
CNC crowning for maximum accuracy
Safety fence door and laser front protection
CSA approval
On-site installation and training included
Why choose Machitech?
Full part list and electrical schematics
On-site installation and tailored training included
Free lifetime remote support
Hydraulic Press Brakes
TONNAGE AND BEND LENGTHS (IMPERIAL)
- 66 tons: 5′, 6′
- 110 tons: 8′, 10′
- 150 tons: 10′, 12′
- 190 tons: 10′, 12′, 13′
- 250 tons: 10′, 12′, 13′, 20′
- 350 tons: 10′, 12′, 13′, 20′
- 450 tons: 13′, 20′
- 550 tons: 13′, 16′, 20′
- 660 tons: 13′, 20′
- 770 tons: 13′
Electric Press Brakes
TONNAGE AND BEND LENGTHS (IMPERIAL)
- 44 tons: 5′
- 55 tons: 6′
- 88 tons: 8′
- 110 tons: 10′
- 145 tons: 10′
- 165 tons: 10′
- 190 tons: 12′
- 220 tons: 13′
Optional Features
Delem 69S CNC controller, 3d drawing and profiling capabilities
Robotic Brake Press Tending System
CNC sheet support followers
Real time production monitoring
4 Axis Back Gauge (X-R-Z1-Z2)
5 Axis Back Gauge (X1-X-R-Z1-Z2)
6 Axis ATF Back Gauge (X1-X2-R1-R2-Z1-Z2)
Additional day/light stroke
Additional throat depth
Automatic pneumatic clamping
Tandem press brake configurations
Laser angle measuring device
