CNC Plasma Cutting Tables
Titanium Cut™
Heavy Plate Cutting, Drilling and Tapping
The Machitech Titanium Cut™ Plasma Table is a plate processing machine engineered for the most demanding customers such as Steel Service Centers, Ship Building and Structural Steel Applications. It's the perfect plate processing machine for high production volume & industrial drilling and tapping.
Request a pricing quote
Contact us to get a free custom quote
Request a pricing quote
Contact us to get a free custom quote
- 10’x20’ up to 30’x300’ (custom available)
- Heavy-Duty Gantry & Rails System
- 12”x12” Double Steel Gantry Fully Machined
- 40HP Drilling and Tapping Station
- Automatic tool changer (6 stations)
- Floor Mounted Inverted Rails System™
- Magnetic Torch Breakaway System
- Automatic Torch Height Controller
- Bosch Rexroth Servo Motor Drives
- Bosch Linear Ways on Machined surfaces
- Downdraft or Water Table (optional)
- Agma 10 Helical Rack & Pinion on all axis
- Ultra-precise Helical Planetary Gearboxes
- Oversized End-trucks
- Heat shield under gantry
- Cables and hoses are fully enclosed
- Hypertherm HPR400XD Plasma (Most Popular)
- Hypertherm HPR800XD Plasma
- Hypertherm XPR170 Plasma
- Hypertherm XPR300 Plasma
- Hypertherm Edge Connect™ Controller
- Hypertherm Pronest 2019 Software
- Machitech Industrial Enclosure
- 5-Axis Full Contour Bevel Head
- Up to 8 Oxyfuel Stations
- Additional Plasma Cutting Stations
- Fume extraction Systems
- Pipe and Tube Cutting systems
- Cut N'Clean Slag Removal System
- Removable trays for easy cleanout
- Electronic raise/lower system
- Digitizing tablets
- Manual Bevel System
- IHT Automatic Oxyfuel Torches
- Pneumatic scribe, inkjet or dot peen
- Additional security options
- Additional clearance under gantry
- Table Capacity: 8″
- Clearance Under Gantry: 12″
- Cutting Speed: 500 IPM (process)
- Max Speed Traverse: 1000 IPM
- Drilling Diameter: 3"
- Tapping Diameter: 1.5"
- Repeatability: 0.001″
- Positioning Accuracy: 0.002″
Features and Specifications
Top-of-the-line Standard Features
Available sizes: 10’x20’ up to 30’x300’ (custom available)
Gantry & Rails System, modular for expansion down the road
Double 12”x12” Heavy Duty Fully Machined Steel Gantry
Heavy Duty Construction for High Production needs
40HP Suhner Drilling and Tapping Station
6 station automatic tool changer
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Innovative Patented Floor Mounted Inverted Rails System
Fully-welded and Machined tables (Downdraft or Water)
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on Machined surfaces
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track
Why choose Machitech?
Full part list and electrical schematics
On-site installation and tailored training included
Free lifetime remote support

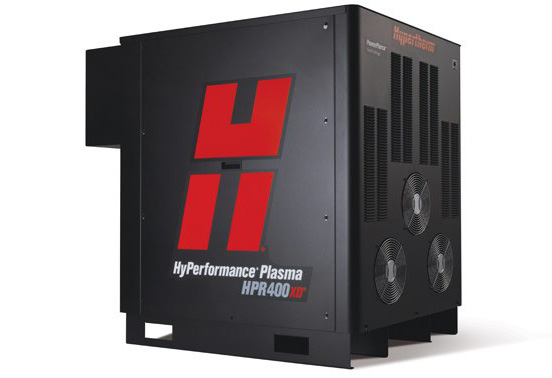

Hypertherm HPR400XD Plasma System
he HyPerformance® HPR400XD plasma system has been designed and built for maximum performance and productivity in x-y, bevel and robotic cutting operations. The versatile 400-amp rated system combines fast cutting speeds, rapid process cycling, quick changeovers and high reliability, and delivers the ultimate in HyPerformance mild steel cutting.
Other Plasma Systems Available
Hypertherm Edge Connect™ Controller
EDGE Connect is the next generation of Hypertherm’s industry leading automated control systems. This new platform is built upon 50 years of experience and commitment to develop, build, and sell products that improve your cutting operation.
Machitech Industrial Enclosure
Our self-standing industrial enclosure protects the controller against dust and impacts while providing hardware controls to the operator.
Available options for the Titanium Cut
5-Axis Full Contour Bevel Head
Additional Plasma Cutting Stations
Up to 8 oxyfuel stations
IHT Automatic Oxyfuel Torches
Fume extraction Systems
Pipe and Tube Cutting systems
Cut N’ Clean Slag Removal System
Removable trays for easy cleanout (waterbed)
Electronic raise/lower system (waterbed)
Digitizing tablets
Pneumatic scribe, inkjet or dot peen market
Security system (pull cord, light curtain)
Additional clearance under gantry
Featured options

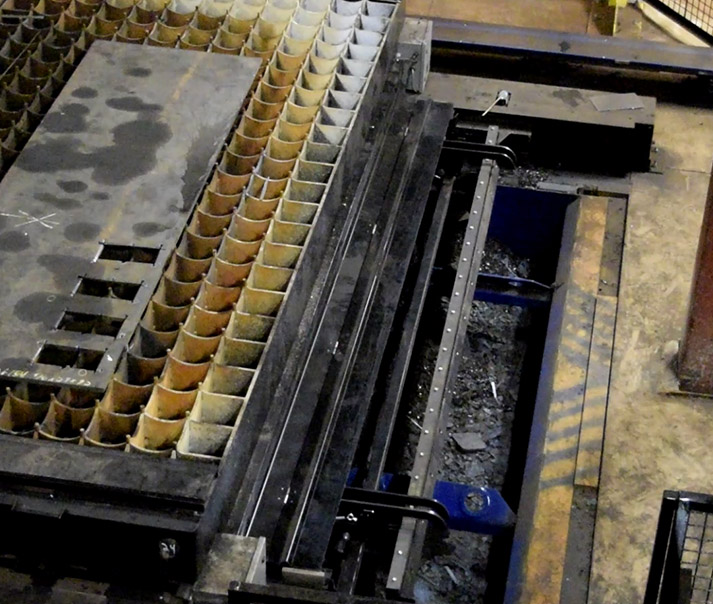

Cut N’ Clean™ Slag Removal System

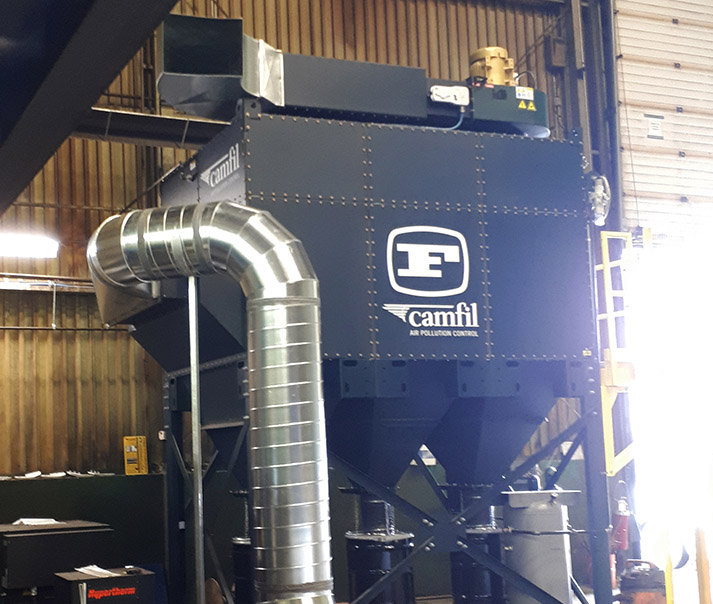

Camfil Dust Collectors
Machine Specifications
Table Capacity: 8″ (custom available)
Clearance Under Gantry: 12″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1000 IPM
Drilling Diameter: 3″
Tapping Diameter: 1.5″
Repeatability: 0.001″
Positioning Accuracy: 0.002″
97%
of our customers
would recommend Machitech
Lifetime Remote Support
You need us? We're Ready. Anytime.
Photos and Videos
You might be interested in these solutions

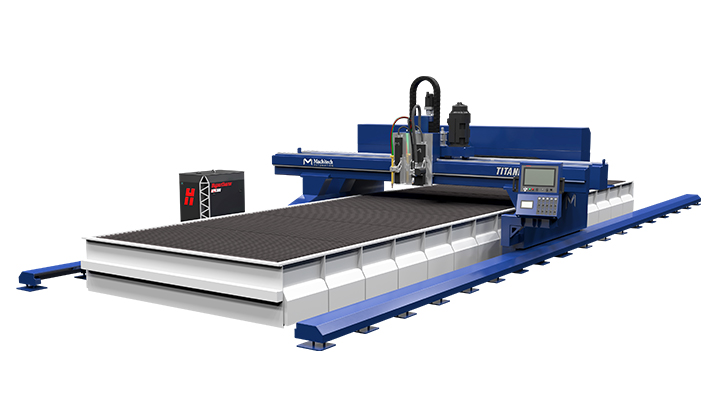

Titanium Cut™
