CNC Plasma Cutting Tables
Platinum Cut™
Heavy Plate Cutting and High Volume
The Machitech PlatinumCut™ Plasma Table is a custom industrial cutting solution for steel industries such as shipyards, plate processing facilities and structural steel fabricators. With its Gantry & Rails design, its ideal for customers that already have a table bed or that wants to build its own with the supplied drawings
Request a pricing quote
Contact us to get a free custom quote
Request a pricing quote
Contact us to get a free custom quote
- 10’x20’ up to 30’x300’ (custom available)
- Heavy Duty System
- Gantry & Rails System
- 12”x12” Steel Gantry Fully Machined
- Floor Mounted Inverted Rails System™
- Magnetic Torch Breakaway System
- Automatic Torch Height Controller
- Bosch Rexroth Servo Motor Drives
- Bosch Linear Ways on Machined surfaces
- Downdraft or Water Table (optional)
- Agma 10 Helical Rack & Pinion on all axis
- Ultra-precise Helical Planetary Gearboxes
- Oversized End-trucks
- Heat shield under gantry
- Cables and hoses are fully enclosed
- Hypertherm PowerMax Plasma
- Hypertherm XPR170 Plasma
- Hypertherm XPR300 Plasma (Most Popular)
- Hypertherm HPR400XD Plasma
- Hypertherm Edge Connect™ Controller
- Hypertherm Pronest 2019 Software
- Machitech Industrial Enclosure
- 5-Axis Full Contour Bevel Head
- Up to 8 Oxyfuel Stations
- Additional Plasma Cutting Stations
- Fume extraction Systems
- Pipe and Tube Cutting systems
- 20HP Drilling and Tapping station
- Cut N'Clean Slag Removal System
- Removable trays for easy cleanout
- Electronic raise/lower system
- Digitizing tablets
- Manual Bevel System
- IHT Automatic Oxyfuel Torches
- Pneumatic scribe, inkjet or dot peen
- Additional security options
- Additional clearance under gantry
- Table Capacity: 8″
- Clearance Under Gantry: 12″
- Cutting Speed: 500 IPM (process)
- Max Speed Traverse: 1000 IPM
- Repeatability: 0.001″
- Positioning Accuracy: 0.002″
Cryoquip - Murrieta, California
Cryoquip, a Cryogenic Industries Company, is the world’s leading fabricators of cryogenic vaporizers and industrial gas equipment.
See why they acquired a Machitech PlatinumCut plasma cutting machine for their plate cutting needs.
Watch on Youtube
Features and Specifications
Top-of-the-line Standard Features
Available Sizes: 10’x20’ up to 30’x150’ (custom available)
Gantry & Rails System, modular for expansion down the road
Heavy Duty Construction for High Production needs
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Innovative Patented Floor Mounted Inverted Rails System
Fully-welded and Machined tables (Downdraft or Water)
12”x12” Heavy Duty Fully Machined Steel Gantry
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on Machined surfaces
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track
Why choose Machitech?
Full part list and electrical schematics
On-site installation and tailored training included
Free lifetime remote support
Hypertherm XPR300 Plasma System
The new XPR300™ represents the most significant advance in mechanized plasma cutting technology, ever. It advances HyDefinition® cut quality by blending new technology with refined processes for next generation, X-Definition™ cutting on mild steel, stainless steel and aluminum.
Other Plasma Systems Available
Hypertherm Edge Connect™ Controller
EDGE Connect is the next generation of Hypertherm’s industry leading automated control systems. This new platform is built upon 50 years of experience and commitment to develop, build, and sell products that improve your cutting operation.
Machitech Industrial Enclosure
Our self-standing industrial enclosure protects the controller against dust and impacts while providing hardware controls to the operator.
Available options for the Platinum Cut
5-Axis Full Contour Bevel Head
20HP Drilling and Tapping Station
Additional Plasma Cutting Stations
Up to 8 oxyfuel stations
IHT Automatic Oxyfuel Torches
Fume extraction Systems
Pipe and Tube Cutting systems
Cut N’Clean Slag Removal System
Removable trays for easy cleanout (waterbed)
Electronic raise/lower system (waterbed)
Digitizing tablets
Pneumatic scribe, inkjet or dot peen market
Security system (pull cord, light curtain)
Additional clearance under gantry
Featured options

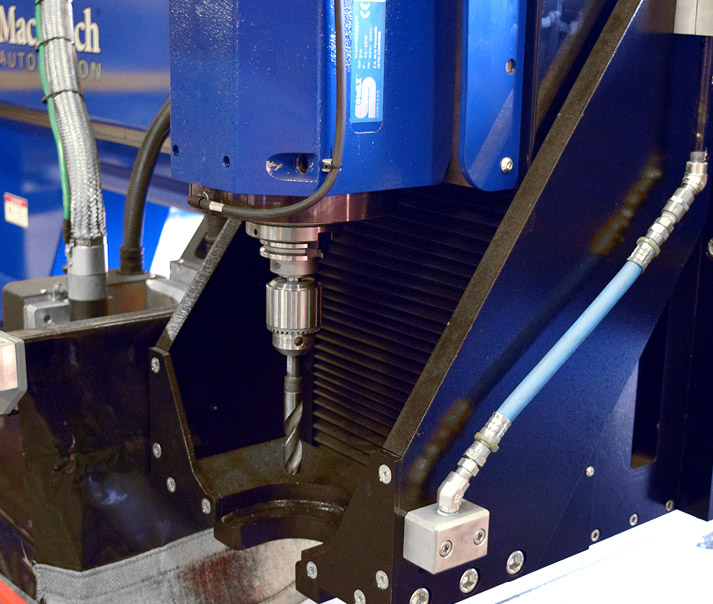

20HP Drilling Station
Multiple Oxyfuel Stations
Machine Specifications
Table Capacity: 8″ (custom available)
Clearance Under Gantry: 12″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1000 IPM
Repeatability: 0.001″
Positioning Accuracy: 0.002″
97%
of our customers
would recommend Machitech
Lifetime Remote Support
You need us? We're Ready. Anytime.
Photos and Videos
CUSTOMER PROFILES
Cryoquip - Murrieta, California
Cryoquip, a Cryogenic Industries Company, is the world’s leading fabricators of cryogenic vaporizers and industrial gas equipment.
See why they acquired a Machitech PlatinumCut plasma cutting machine for their plate cutting needs.
