Waterjet Cutting Systems

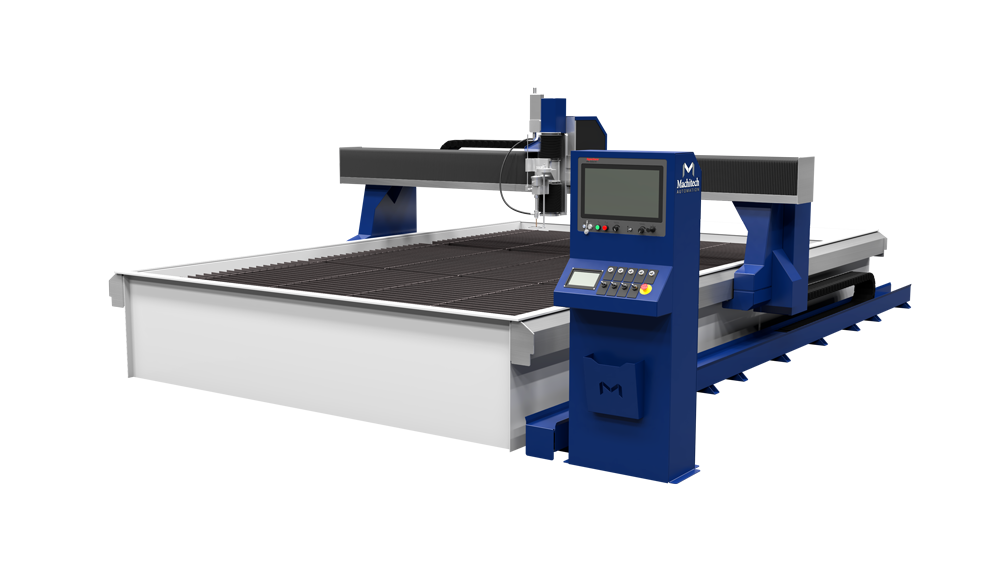

Waterjet
Versatile unitized cutting system
The Machitech Waterjet is specially designed for high precision cutting of almost any non-ferrous material.
Request a pricing quote
Contact us to get a free custom quote
Request a pricing quote
Contact us to get a free custom quote
- Available sizes: 5’x10’ up to 12’x45’ (custom available)
- Heavy Duty Gantry & Rails System with protective bellows
- Machitech Automatic Waterjet Height Controller
- Bosch Rexroth AC Servo Motor Drives (Ethercat)
- Stainless steel linear ways, bearings, bolts and inverted rail
- System covers to prevent corrosion
- Fully welded water table
- 6”x8” Steel Gantry Fully Machined and Welded
- Oversized End-trucks for Maximum Stability
- Agma 10 Helical Rack & Pinion on all axis
- Innovative inverted rail system
- Ultra-precise Helical Planetary Gearboxes
- Cables and hoses are protected by an Enclosed Power Track
Hypertherm Echion Waterjet Pumps
Available in three power levels, Echion™ 15, 30, and 50 waterjet pumps deliver consistent cut quality at optimum cutting speeds and a design that simplifies service so maintenance is faster, easier, and less expensive. At the same time, Echion pumps include features like fully integrated cooling for a smaller footprint that enables easy integration into small spaces.Other Waterjet Pumps Available
- Hypertherm Echion 15/30/50
- Hypertherm HyPrecision D Series
- Hypertherm HyPrecision S Series
Hypertherm Edge Connect™ Controller
EDGE Connect is the next generation of Hypertherm’s industry leading automated control systems. This new platform is built upon 50 years of experience and commitment to develop, build, and sell products that improve your cutting operation.Hypertherm Edge Connect™ Controller
Our self-standing industrial enclosure protects the controller against dust and impacts while providing hardware controls to the operator.
Available options for the Waterjet cutting systems
- Additional safety options
- Additional clearance under gantry
Machine Specifications
- Table Capacity: 4″ standard
- Clearance Under Gantry: 8.5″
- Cutting Speed: 500 IPM (related to process)
- Max Speed Traverse: 1000 IPM
- Repeatability: 0.001″
- Positioning Accuracy: 0.002″
Features and Specifications
Top-of-the-line Standard Features
Available sizes: 5’x10’ up to 12’x45’ (custom available)
Heavy Duty Gantry & Rails System with protective bellows
Machitech Automatic Waterjet Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Stainless steel linear ways, bearings, bolts and inverted rail system covers to prevent corrosion
Fully welded water table
6”x8” Steel Gantry Fully Machined and Welded
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Innovative inverted rail system
Ultra-precise Helical Planetary Gearboxes
Cables and hoses are protected by an Enclosed Power Track
Why choose Machitech?
Full part list and electrical schematics
On-site installation and tailored training included
Free lifetime remote support
Hypertherm Echion Waterjet Pumps
Available in three power levels, Echion™ 15, 30, and 50 waterjet pumps deliver consistent cut quality at optimum cutting speeds and a design that simplifies service so maintenance is faster, easier, and less expensive. At the same time, Echion pumps include features like fully integrated cooling for a smaller footprint that enables easy integration into small spaces.
Other Waterjet Pumps Available

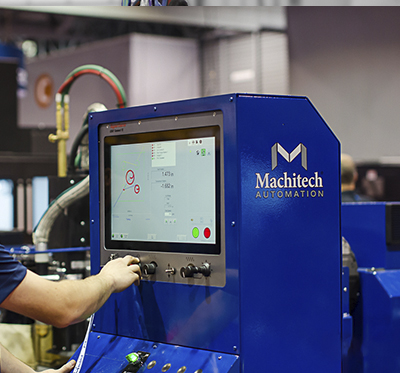

Hypertherm Edge Connect™ Controller
EDGE Connect is the next generation of Hypertherm’s industry leading automated control systems. This new platform is built upon 50 years of experience and commitment to develop, build, and sell products that improve your cutting operation.
Machitech Industrial Enclosure
Our self-standing industrial enclosure protects the controller against dust and impacts while providing hardware controls to the operator.
Available options for the Waterjet cutting systems

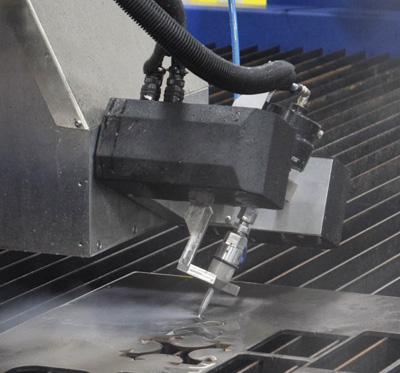

5-axis full contour bevel head for waterjet
Laser positioning system
Featured options
5-axis waterjet bevel system
Machine Specifications
Table Capacity: 4″ standard
Clearance Under Gantry: 8.5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1000 IPM
Repeatability: 0.001″
Positioning Accuracy: 0.002″
97%
of our customers
would recommend Machitech
Lifetime Remote Support
You need us? We're Ready. Anytime.
Photos and Videos
You might be interested in these solutions
Platinum Cut™
Industrial bridge and rail system engineered for multiple tool cutting processes.
Titanium Cut™
The perfect machine for steel service centers, ship builders & structural steel applications.
