CNC Plasma Cutting Tables
Maverick™
Affordable Industrial Plasma Table
The Machitech Maverick™ Plasma Table is the most affordable industrial cutting machine on the market thanks to its use of high quality components and the Powermax Plasma System from Hypertherm.
Request a pricing quote
Contact us to get a free custom quote
Request a pricing quote
Contact us to get a free custom quote
- 5’x10’ or 6’x12′
- Compact Construction
- 6”x6” Aluminum Gantry
- Magnetic Torch Breakaway System
- Automatic Torch Height Controller
- Powerful 940 oz-in Nema 34 motors
- Zero backslash drive system
- Self-cleaning DualVee Linear slide system
- Downdraft or Water Table
- Agma 10 Straight Rack & Pinion on all axis
- Cables and hoses are fully enclosed
- Hypertherm Powermax125 (Most Popular)
- Hypertherm Powermax105
- Hypertherm Powermax85
- Hypertherm Powermax65
- Hypertherm Powermax45
- Machitech SilverNest™ Controller
- Integrated Nesting Software
- Machitech Industrial Enclosure
- Oxy/fuel torch on magnetic holder
- Fume extraction Systems
- Laser positioning System
- Manual Bevel System
- Pneumatic scribe
- Additional safety options
- Table Capacity: 1.5″
- Clearance Under Gantry: 5″
- Cutting Speed: 500 IPM (process)
- Max Speed Traverse: 600 IPM
- Repeatability: 0.002″
- Positioning Accuracy: 0.003″
Features and Specifications
Top-of-the-line Standard Features
Available sizes: 5’x10’ or 6’x12′
Unitized contruction, built with compactness in mind
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Powerful 940 oz-in Nema 34 motors with zero backslash drive system
Self-cleaning DualVee Linear slide system
Fully-welded and Machined tables (Downdraft or Water)
6”x6” Aluminum Gantry
Agma 10 Straight Rack & Pinion on all axis
Cables and hoses are protected by an Enclosed Power TrackB&R Stepper Motors
V-Rails
Fork Pockets
B&R touchscreen controller
Hypertherm Pronest LT Software
Powermax45XP to Powermax125, Maxpro200
Why choose Machitech?
Full part list and electrical schematics
On-site installation and tailored training included
Free lifetime remote support
Hypertherm Powermax125 Plasma System
Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers 100% duty cycle, 25 mm (1″) mechanized pierce capability, and fast gouging metal removal.
Other Plasma Systems Available

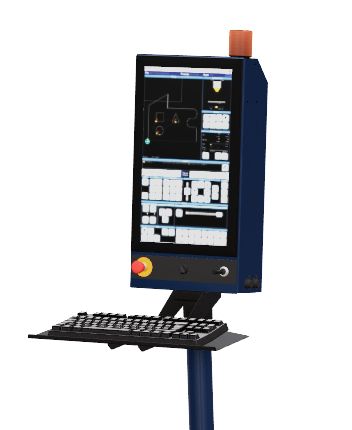

Silver Cut Touchscreen CNC Controller
Touch screen CNC controller on a pedestal mount.
Pronest LT Software
Integrated Pronest LT CAD/CAM/CNC software designed to be user friendly for the novice or the experienced operator.
Available options for the Silver Cut
Oxyfuel torch on magnetic quick-change system
Fume extraction Systems
Laser Positioning System
Manual Bevel System
Pneumatic scribe
Safety system (pull cord, light curtain)
Featured options
Oxyfuel quick-change torch
Pneumatic Scriber
Machine Specifications
Table Capacity: 1.5″
Clearance Under Gantry: 5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 600 IPM
Repeatability: 0.003″
Positioning Accuracy: 0.004″
97%
of our customers
would recommend Machitech
Lifetime Remote Support
You need us? We're Ready. Anytime.
Photos and Videos
